LMUe6000-JM [Applying labels on the top surface]

  • Summary
  • Specification
  • Demo video

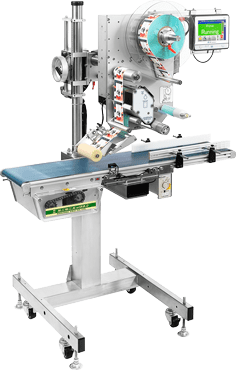

Top-mounted labeler that easily realizes automatic label attachment to the top surface of products

LMUe6000-JM

LMUe6000NR12-JM

LMUe6000-JM



Labeling speed:2m/min to 25m/min

[Label specification]

Basement paper width:18mm to 125mm

Label length:15mm to 200mm

Roll diameter (O.D.):Φ300mm

Paper core (I.D.):Φ75mm

  • Log information
  • Auto tuning
  • Variety
    registration
  • Color touch panel controller EUI2
  • Variable speed conveyor adopted

"LMUe6000-JM" is a general-purpose type (standard machine) top-mounted labeler for labeling on the top surface of products. Equipped with convenient functions that are easy to use at the production site, it realizes easy labeling on the top surface of the product in the post-packaging process. We also have a lineup of stand type without conveyor and type with printer, and you can choose according to your application.

Introduction of use cases by LMUe6000JM

Labeling image

labeling image by  LMUe6000-JM

[Application example]
- Label the lids of various cup containers such as ice cream, jelly, and pudding
- Labeling on the top of small boxes, cosmetic boxes, etc.
- Labeling on tray containers
- Labeling on the top of the bottle

Introduction of use cases by LMUe6000JM

Convenient functions / features

01

Log information

EUI2 operated log and error log are kept 3,000 latest each. In case of trouble, you can investigate the cause promptly.

02

Auto tuning

Label stopping position differs by the label length. Auto tuning function can adjust the position automatically.

03

Settings such as label applying position can be registered for each product type

By registering the product type such as the label applying position, it is possible to easily recall various settings for each product.

04

Color touch panel controller "EUI2"

The controller is easy to understand touch panel formula. Simple selection on the touch panel at the time of type switching.

05

Conveyor speed can be set according to production capacity

The conveyor adopts a variable speed type. The speed can be set according to the production capacity of the factory.

Various variations

Conveyor type

LMUe6000-JM Conveyor type

You can easily top-paste by simply placing the product on the conveyor.

Ideal for offline labeling work.

[Example of use]

- Labeling for small lot products and seasonal products

Stand type

LMUe6000-JM Stand type

A stand type without a conveyor suitable for incorporation into a production line.

By laying it next to the existing production line, you can easily apply labels in-line.

[Example of use]

- Ideal for mass applying one-point labels that are applied only during campaigns

Printer-mounted conveyor type

LMUe6000-JM Printer-mounted conveyor type

It is a conveyor type equipped with an intermittent thermal printer "THP301".

Labels can be applied by clearly printing the date and various barcodes.

[Example of use]

- Ideal for applying labels while printing the expiration date on product labels offline

Printer-mounted stand type

LMUe6000-JM Printer-equipped stand type

It is a stand type equipped with an intermittent thermal printer "THP301".

Labels can be applied by clearly printing the date and various barcodes.

[Example of use]

- Ideal for applying labels while printing the expiration date on product labels on existing production lines

Color touch panel controller “EUI2”

EUI2

A new color touch panel controller "EUI2" is used for the operation interface. It is a terminal that maintains the ease of understanding of the conventional controller EUI. In addition, the operability in the field is enhanced by expanding functions, improving the definition of the operation screen, and increasing the response speed of the screen.



[feature]

  • Item search function by item name and key word
  • SD card is used as the recording media

Specification

Model LMUe6000NS12-JM (Left→Right direction)
LMUe6000NR12-JM (Right→Left direction)
Type Top-mounted labeling machine with a conveyor
Variety registration 200
Labeling speed 2 m/min to 25 m/min
Label specification Basement paper width:18 mm to 125mm
Label width:15 mm to 120 mm
Label length:15 mm to 200 mm
Roll diameter (O.D.):Φ300 mm
Paper core (I.D.):Φ75 mm
Conveyor specification Belt width:200 mm
Belt length:1000 mm
Speed:7 m/min to 25m/min (Variable speed)
Products width:40 mm to 195 mm
Products height:40 mm to 145 mm
Conveyor height 775 mm to 855 mm (With adjustment bolt)
Drive method Stepping motor
Power supply Main body:AC100-240 V, 140 VA, 50/60 Hz
Conveyor:AC100 V, 25 VA, 50/60 Hz
Entire system weight approx. 67 kg(Including body weight)
Operating environment Temperature : 5℃-40℃
Humidity : Under 90%RH (no dew condensation)

※The above specification is the specification of conveyor type.

※The specification may differ from conditions of use. Specification and other information are subject to change without notice.
